- Sensing type : Narrow beam reflective type
- Sensing distance : 200mm
- Sensing target : Opaque, Translucent material
- Light source : Infrared LED(850nm)
- Response time : Max. 1ms
- Power supply : 12-24VDC
±10%(ripple P-P: max. 10%) - Operation mode : Light ON/Dark ON(set by control wire)
- Control output : NPN open collector

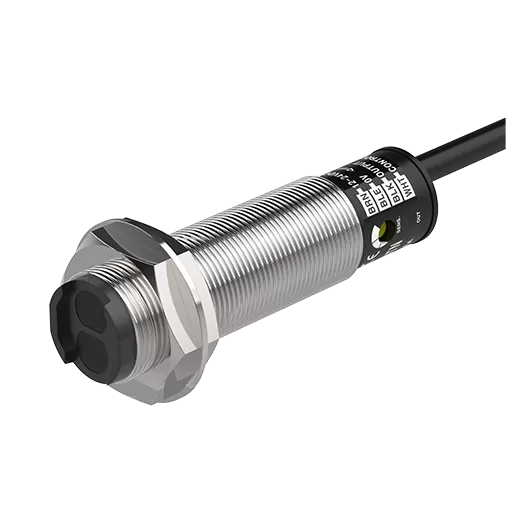

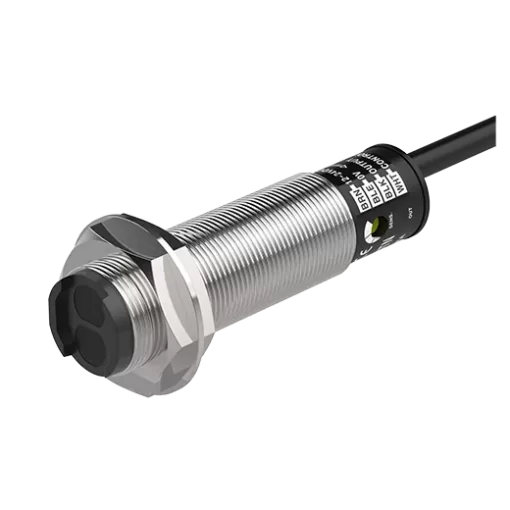

چشم آتونیکس مدل BR200-DDTN
Data sheet Print
| Sensing type | Narrow beam reflective type |
|---|---|
| Sensing distance | 200mm |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED(850nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 45mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | NPN open collector |
| Connection type | Cable type(Ø5, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -10 to 60℃, storage: -25 to 75℃ |
| Protection structure | IP66 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 20% at rated sensing distance |
| Material | Case – Brass, Ni-plate Sensing part – Polycarbonate lens |
| Accessories | M18 fixing nut: 2, washer:1, adjustment screwdriver |
| Weight | Approx. 160g(approx. 120g) |
